Information

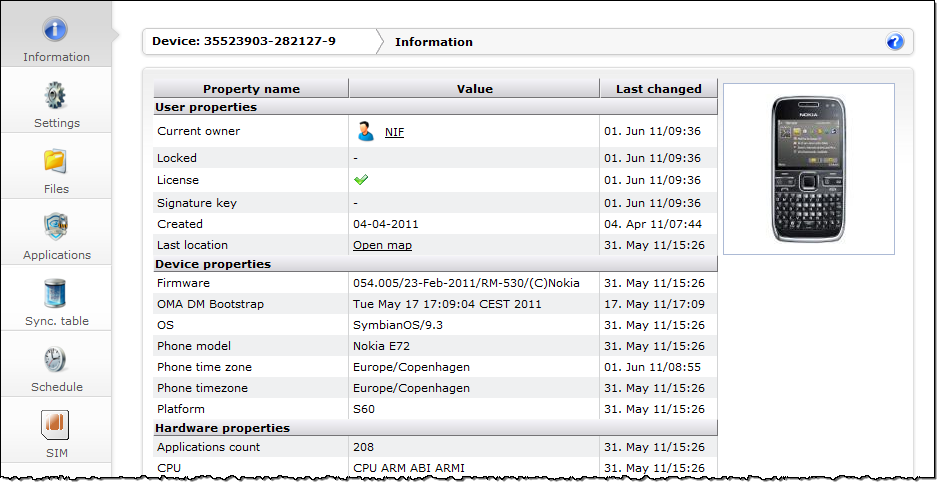

This panel section provides an overview of the selected device. The information is updated every time a full system info is transferred from the client, or at least once every three days.

The information is divided into different sections:

• User properties: Information about the user — current owner, licensing, lock status, client signature status, and possibly location (see Location below).
• Device properties: Information about the device - model, platform, operating system, language, number of applications, etc.
• Hardware properties: Information about the device hardware — processor, drives, etc.
• DME properties: Long version of the DME client information, useful in a support context. Apple or GCM push token value. Maximum batch and field size.
• Network properties: Current cell ID and location information of the device. Here you can see if the phone is currently roaming.
• Device security: If an Apple device is enrolled, and profiles have been installed, a summary of these profiles may be shown here.
• Device servers: List of servers running on the device, with version numbers (if any). Symbian only.

The information collected from the device in these sections varies according to the type of device and is not described in detail here. For every piece of information, the date of when the property was last changed is shown.

Uploading a picture of the device

If a picture of the device has been uploaded to the server, it is shown next to the device properties section. A picture is usually shown if the device has been bootstrapped (see Bootstrapping devices). If a picture is not shown, you can upload a picture yourself as described below.

1. Click Upload device picture at the bottom of the screen (only available if DME could not find a picture).
2. Browse to the picture.

   You can download a picture from the DME website to your disk by clicking the Pictures can be downloaded here link in the dialog.

3. Click Accept.

The picture is uploaded to the server and can be seen next to the information table and in the mouse-over info box from the Devices tab and elsewhere.
